Pvc Ceiling Panel Making Machine , Pvc Ceiling Production Line Easy Operation

Name: Pvc Ceiling Panel Making Machine Pvc Ceiling Production Line Easy Operation
Brand: Friend
Price: 1 USD

China Pvc Ceiling Panel Making Machine , Pvc Ceiling Production Line Easy Operation wholesale

Brand Name : Friend

Model Number : SJSZ

Certification : CE,SGS,TUV

Place of Origin : China

MOQ : one set

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 30 sets per month

Delivery Time : 30 days after receiving deposit

Packaging Details : Film package,also can be wooden package if needed

Material : PVC powder

Motor brand : Simens Bade

Voltage : 380V 50HZ customized

Motor Power : 18.5kw,22kw,37kw

Screw Design : double screw

After-sales Service Provided : Engineers available to service machinery overseas

Contact Now

PVC Ceiling Panel Extrusion Machine / plastic ceiling panel extrusion line

Application:

pvc ceiling panel extrusion making machinery is mainly used in production many different size of ceiling panels, such as 6MM, 8MM, 10MM thickness. Besides products size, surface treatment is not same. we have three printing techonology, such as hot stamping, printing, lamination. They can be applied in different space fields.Various products can be produced according to customers samples.

PVC ceiling panel extrusion line equipments:

Extruder with hopper + Vacuum calibrating bench + water tank +hual off machine +heater transfer printing + cutting with stock machine

Raw materials for pvc ceiling panel:

PVC + calcium + other additives.

PVC high chemical stability,panels can be used for a long time.

Techinical Parameter:

Extruder	single screw			conical twin screw
Model	SJ65/28	SJ90/28	SJ120/28	SJSZ65/132	SJSZ80/156	SJSZ92/188
prive power(kw)	30	55	90	37	55	110
max capacity(kg/h)	50-60	80-100	150-200	120	280	350
center height(mm)	1050	1050	1050	1050	1050	1100
weight(kg)	1200	2000	4000	4000	5500	8000

Introudction:

Material can be extruded out directly after two grades of mixing, and it can also be extruded by two steps after pelleting. The line is of characteristics of energy and space saving, high output, stable performance etc. Preheating feeder is installed at the top of extruder, which will dry the wood powder firstly, thus perfect plastic zation is guaranteed.
Special-designed screw will minimize cutting force, which prevents wooden fiber from being damaged. Both screw and barrel are special-treated,which are featured of abrasion proof and long life-span.
This production line is consisted of conical twin-screw extruder, vacuum calibration table, haul-off unit and stacker, and also coordinated with different kinds of moulds to produce PVC door & window profiles, foamed special-shaped profiles, decoration plates etc.
The end products PE PP or PVC wood plastic compound profiles are of wide application, which are mainly be used for trays, box boards, flooring, outdoor decorative materials and so on, The wood and plant fiber increasing rate is very high(up to 50-70%),and the line is of good adoptability, which can be used for process different materials such as PP PE PVC ABS PS and so on.

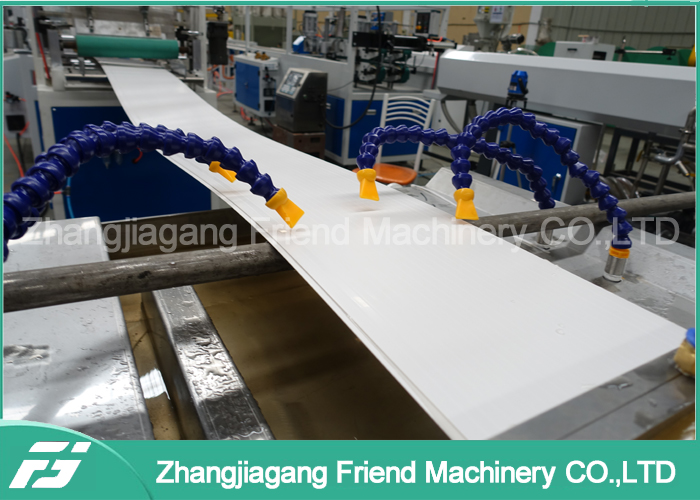

Picture:

Pvc Ceiling Panel Making Machine , Pvc Ceiling Production Line Easy Operation
