250MM Pe Pvc Hdpe Plastic Pipe Extrusion Machine 100-250kg/H Capacity

Zhangjiagang Friend Machinery Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

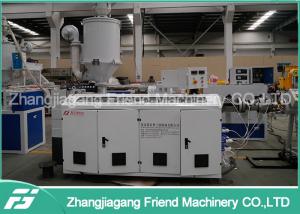

250MM Pe Pvc Hdpe Plastic Pipe Extrusion Machine 100-250kg/H Capacity

Brand Name : Friend

Model Number : SJ75/33

Certification : CE certificate

Place of Origin : Jiangsu Province, China

MOQ : 1 SET

Price : negotiation

Payment Terms : L/C, D/A, T/T, Western Union

Supply Ability : 10 SETS per month

Delivery Time : 20-40 working days after deposit

Packaging Details : standard film package

Type : SJ75/33 High Efficiency HDPE PP Pipe Extruder Machine for 250MM PE Pipe Extrusion Line

process material : PE PP Granules

Final Product : HDPE PP water and gas pipe

Pipe Diameter : 20-250mm

Capacity : 100-250kg/h

Motor Brand : Siemens

Temperature Controller : Omron Brand

Shipping Container : 40HQ

Contact Now

SJ75/33 High Efficiency HDPE PP Pipe Extruder Machine for 250MM PE Pipe Extrusion Line

single screw plastic extruder is mainly used in extruding soft and hard thermoplastics, such as PE, PP, PVC, ABS etc. It cooperates with relevant auxiliary machine (include shaping machine head) to produce many kinds of plastic products, for example, film, pipe, rod, plate, thread, cable insulating layer, hollow product, it is also used for pelletizing.

250mm PE pipe production line specially designed for PP,PE pipe,this production line also suitable HDPE, PPR material , what need we do is to change raw material.

These final product pipe are mainly used in the area of agricultural water supply system, architectural water supply system, gas pipe, sewages pipes,pavement of cables,etc.

The main parts of the line are PLC control, high degree of automation .
Adopting compound spiral engine head , effectively deleting memory function of the material .
Adopting co-extrusion head to improve the tube color line.
Vacuum calibration , constant temperature control , eliminating pipe stress.
High extrusion capacity, low temperature of melt , equal temperature of melt.
Wide processing range of raw materials.

Pipe Diameter range: 75mm,90mm,110mm;125mm,140mm;160mm;180mm;200mm;225mm;250mm,280mm

Major parts of 75-280mm HDPE pipe making line:

Description of SJ series single screw extruder:

SJ series single screw extruder is mainly used to produce PP,PE, PPR, ABS and other thermoplastic plastics. Equipped with auxiliary machines, it can produce pipes, profile, sheets, granules and other plastic products. This single screw extruder has many advantages, such as low noise, smooth and stable operation, large loading, long use-life, low cost, etc.


Advantages of SJ series single screw extruder:
1. Suitable for various polyolefin materials: PP, PE, HDPE, PPR, ABS, etc. SJ single screw extruder adopts advanced human-machine interface control system to realize the automatic control of the whole production line.
2. Excellent temperature control system to ensure the stability of the producing process. Integrated design of force water cooling and force groove ensures the evenness and stability of the manufacturing process.
3. High performance driving system, wearable and easy to maintain.

Main technical parameter of SJ75/33 single screw extruder

Extruder model SJ 45/30 SJ65/33 SJ75/33 SJ90/33 SJ120/33 SJ150/33
Screw Dia (mm) 45mm 65mm 75mm 90mm 120mm 150mm
Draw ratio 30:1 33:1 33:1 33:1 33:1 33:1
Main Motor (kw) 18.5/22kw 37/45 k w 75 k w 110kw 220kw 260kw
Heating power (kw) 13.5 kw 16.5kw 37kw 42 kw 64kw 72kw
Output (Kg/H ) 30-60kg/h 50-100kg/h 80-160kg/h 150-250kg/h 300-500kg/h 500-800kg/h

250MM Pe Pvc Hdpe Plastic Pipe Extrusion Machine 100-250kg/H Capacity250MM Pe Pvc Hdpe Plastic Pipe Extrusion Machine 100-250kg/H Capacity
